You can resolve a heating lockout using the Raypak Hi Delta troubleshooting manual guidance by clearing system safety trips and confirming open water flow across the heat exchanger. A tripped water flow switch or a blocked vent is the most common cause of an unexpected shutdown. Check the front diagnostic status panel before touching any controls.
Troubleshoot why your Raypak Hi Delta fails

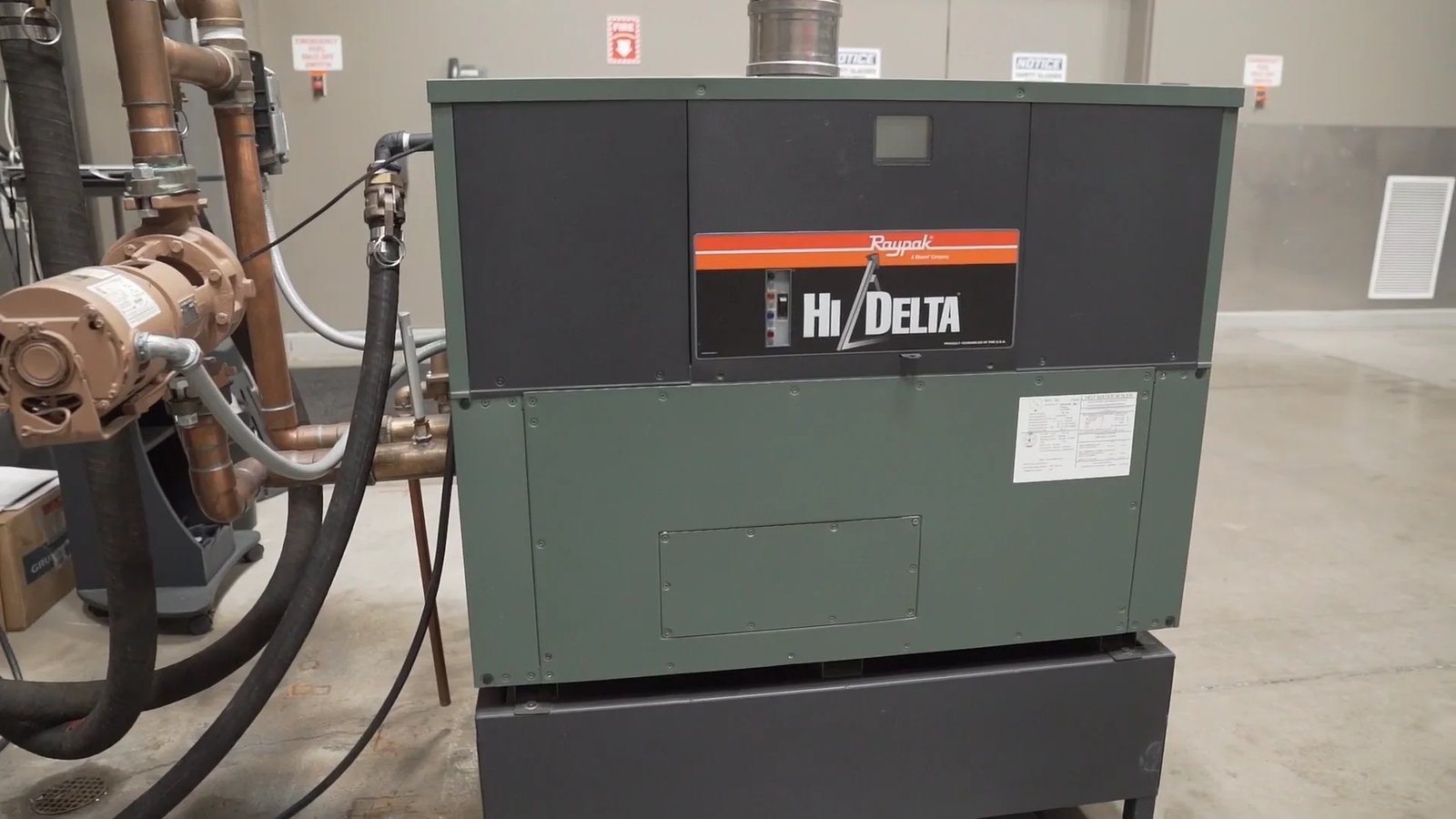

Photo: www.raypak.com on Google
Raypak Hi Delta boilers and volume water heaters rely on a sequence of safety switches to protect the combustion chamber. When water flow drops below the required rate, the internal flow switch opens and cuts burner power instantly. This protects the copper or cupronickel tubes from warping under intense heat.
Another frequent failure comes from blocked air intake screens or vent terminations. The system uses a differential air pressure switch that confirms the blower fan moves enough fresh air for safe gas combustion. If leaves, snow, or lint clog the intake terminal, the switch stays open. The controller then stops the ignition sequence to prevent unburned fuel buildup. Finally, incoming gas supply pressure can dip when other gas appliances run, which trips the manual-reset low gas pressure switch.
Check external water and gas valves
This step is for property owners dealing with an unlit burner after routine building maintenance or a seasonal shutdown. Look at the service valves on both the gas supply pipe and the water inlet line leading into the unit. Both valve handles must sit parallel to their pipes, showing they’re fully open. If a valve handle sits perpendicular, turn it a quarter turn until it lines up with the pipe.
Next, check the external system circulating pump to verify it runs and pushes water toward the heater. The diagnostic panel’s water flow light turns steady green once the switch senses adequate flow. This fix takes no specialized tools, but you must avoid opening gas valve internal bodies. If a valve is stuck, seized, or leaks gas odor, step away and call your local gas utility immediately.
Inspect vent terminations and air filters

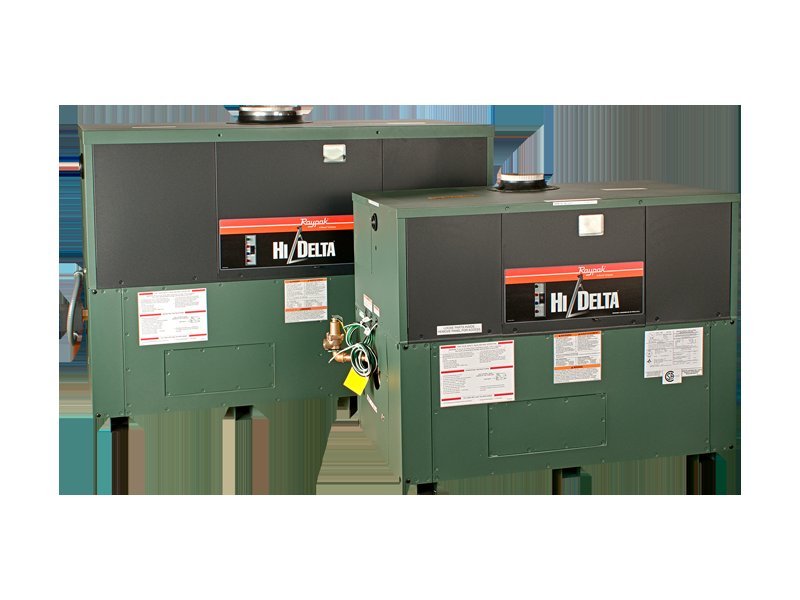

Photo: www.raypak.com on Google
Inspect the outdoor intake and exhaust terminals along with the cabinet air intake filter. This fix solves combustion air switch lockouts, which often happen after heavy winds or storms. Walk outside to the exhaust and intake terminal caps on the roof or exterior wall. Remove any trapped leaves, bird nesting material, or packed dirt clear of the wire screens.
Back at the heater, inspect the washable intake air filter located behind the combustion air intake louvers. A heavily soiled filter starves the burner of oxygen. Slide the filter out, wash it thoroughly with clean water, dry it completely, and slide it back into its channel. When the blower fan starts, the air pressure light should illuminate solid. If clear airflow doesn’t clear the error code, the switch itself may need professional calibration.
Clear control lockouts and reset switches
This step handles hard lockouts where the digital controller refuses to fire after three failed ignition attempts. Press the red reset button on the ignition control board once to clear soft lockout codes. If the display shows a high-limit or gas-pressure trip, locate the manual reset buttons on the upper safety controls. Push each button firmly until you hear a distinct click.
Use this decision rule: if the status light stays green after one reset, let the heater run; if the unit locks out a second time within an hour, stop resetting it. Continuous cycling stresses ignition components and can allow unburned gas into the flue. This safe manual reset takes zero dollars, but internal electrical diagnostics aren’t for untrained homeowners. According to safety protocols published by the U.S. Consumer Product Safety Commission, working inside fuel-burning appliance electrical systems risks fire and carbon monoxide exposure, so call a licensed HVAC technician for persistent trips.
What not to do
- Don’t jump out the water flow switch with a bypass wire, because firing the burner without continuous water flow cracks the heat exchanger tubes within seconds.
- Don’t hit the manual ignition reset button repeatedly, as this floods the firebox with unburned gas and causes dangerous delayed ignition bangs.
- Don’t remove the sheet-metal combustion chamber panels while the blower runs, which disrupts the required air pressure balance and triggers an instant fault.
- Don’t increase the gas regulator adjustment screw without a manometer, since over-firing the burners warps the internal baffle plates.
How to stop it happening again

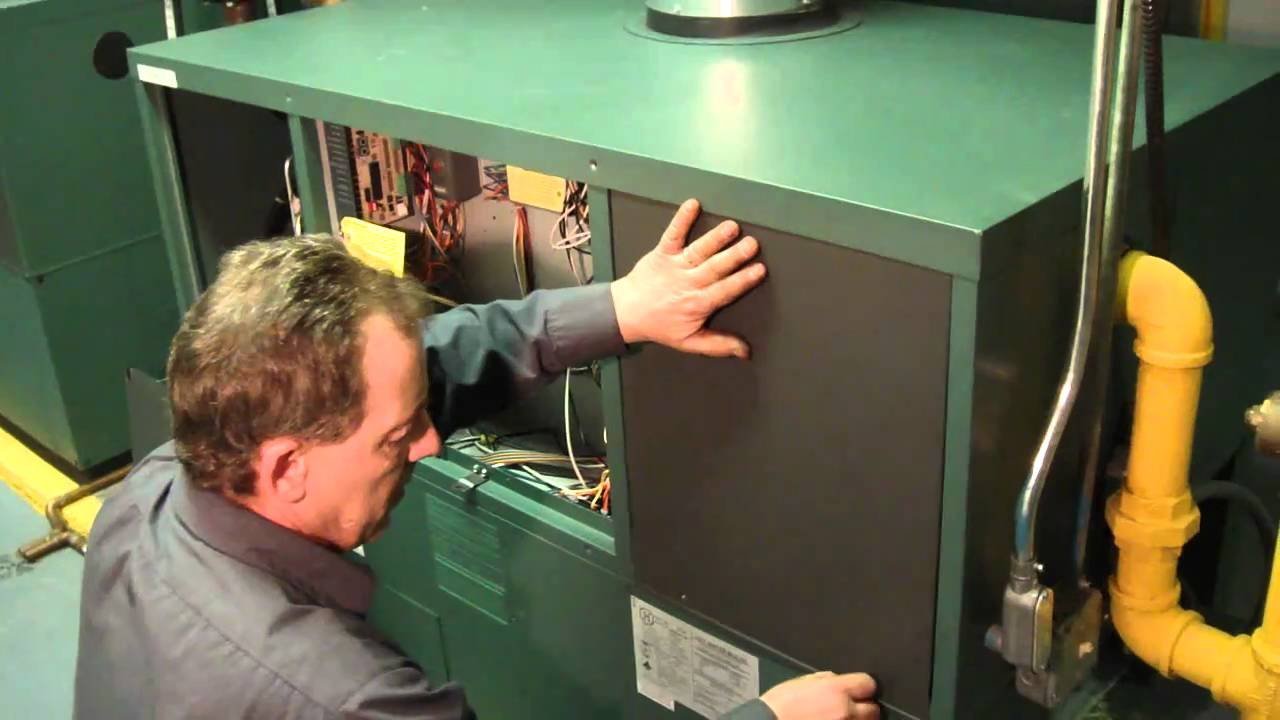

Photo: www.youtube.com on Google
Small routine checks protect commercial heating systems from sudden winter shutdowns.
| If you’re doing this | Do this instead | Why |
|---|---|---|
| Ignoring outdoor intake pipe terminations | Inspect terminal screens once a month | Prevents debris from blocking airflow switches |
| Leaving water strainers uncleaned | Flush the system Y-strainer quarterly | Maintains the flow rate the safety switch requires |
| Resetting breaker switches repeatedly | Track fault codes before cycling main power | Prevents burning out the electronic ignition module |
| Skipping annual pump lubrications | Verify pump amperage every heating season | Ensures the pump moves enough water across tubes |
Frequently asked questions
Can I reset a Raypak Hi Delta heater myself?
Yes, you can press the manual reset button on the front control panel once. If the unit fails to fire after one attempt, leave it alone. Repeated resets can cause unburned gas to pool inside the combustion chamber.
Why does the flow light stay red on the panel?
Low water flow causes the light to stay red. This means your circulating pump isn’t moving enough water, a water valve is closed, or the inlet filter screen is clogged. Check that all water isolation valves are completely open.
How long does an ignition cycle take to start?
About 45 to 60 seconds from the initial call for heat. The draft fan purges the chamber for roughly 15 to 30 seconds before spark ignition begins. The gas valve then opens to light the main burners.
Is it safe to run the heater with an error code?
No, the heater will automatically shut down its burners for safety. The internal safety circuit locks the gas valve closed whenever a sensor detects improper venting, overheating, or inadequate water movement.
What happens if the air pressure switch fails?
The blower fan will spin continuously, but the main burners will never ignite. The controller waits for the switch to confirm positive air draft before sending electric current to the gas valve.
Why is my boiler making a loud banging noise?
Scale buildup inside the heat exchanger or inadequate water flow causes localized boiling and loud popping noises. Turn the unit off immediately to prevent the copper tubes from rupturing under the intense heat.
